4N.m WVA4-...series ss ball valve

4.0N.m Actuator Control Ball Valve

Classification:

Control Ball Valve

Electric SS304 Ball Valve

Customer demand

Product Description

Description
Winner 4N.m WAV4-… series motorized actuated control ball valve consists of WVA4-1../-2../-3.. rotary actuator and WSBV… series stainless steel ball valve.
  • The actuator is controlled by a modulating on/off , 3-point or proportional control system and move the ball of the valve.
  • It has manual and indication functions.

Application
HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.

Technical data
Valve body:
Medium: cold/hot water, with 50% glycol                                      Temperature of medium: -10°C...90°C
Rated pressure: PN20                                                                   Pipe connector: thread ( BSP and NPT, Full port )
Valve type: 2-way and 3-way                                                         Size: G1/2" -G1"
Flow characteristic: equal percentage, on/off

SS304 Ball Valve Body Material

WSBV...Series

Valve body: Stainless Steel SS304                                               Sealing : EPDM+PTFE
Ball : Stainless Steel SS304                                                         SS304 Stem: EPDM O-rings, with 3 O-ring

Model No.

Valve Type

DN(mm)

Inch

Kvs(m3/h)

Pvmax(KPa)

Ps(KPa)

WSBV215

2 way

DN15

1/2

10

1000

1000

WSBV220

DN20

3/4

16

WSBV225

DN25

1

26

WSBV315

3 way

DN15

1/2

10

WSBV320

DN20

3/4

16

WSBV325

DN25

1

26

* V-groove ball valves with different Kv values can be customized. Rc internal thread stainless steel 304, 316, 316L stainless steel ball valves can be made.


Electric Actuator
WVA4-1…   230 VAC±15%, 3-point
WVA4-2…   24VAC/DC±15%,3-point
WVA4-3…   24VAC/DC±15%, proportional (0-10VDC/0-20mA, 2-10VDC/4-20mA)
WVA4-3...-2  12VDC, proportional (0-10VDC/0-20mA, 2-10VDC/4-20mA)
Angle of rotation: 90°
Manual handle   Automatic overload protection system
Manual selection of ball rotation direction: C.W. /C.C.W, factory setting is C.W.
Protect rank: IP54

WVA4-3… Flow characteristic
Input 0-10VDC control signal
Flow characteristic: equal percentage
Flow range: 0%-100%

Model No.

Working Voltage

Actuator type

Output torque

Consumption

on/off time

Valve body

WVA4-104

230VAC±15%

3-point

&

on-off

4.0 N.m



3VA



70-100S

DN25,

DN20,

DN15

WVA4-204

24VAC/DC±15%

WVA4-204-12

12VDC

WVA4-304

24VAC/DC±15%

0-10V

WVA4-304-12

12VDC

Installation:
1. Ensure that the valve body is in the full open status.
2. Ensure that the actuator is in the fully open position as the follow picture:
3. Aligning the valve stem, press down the aluminum alloy spindle.

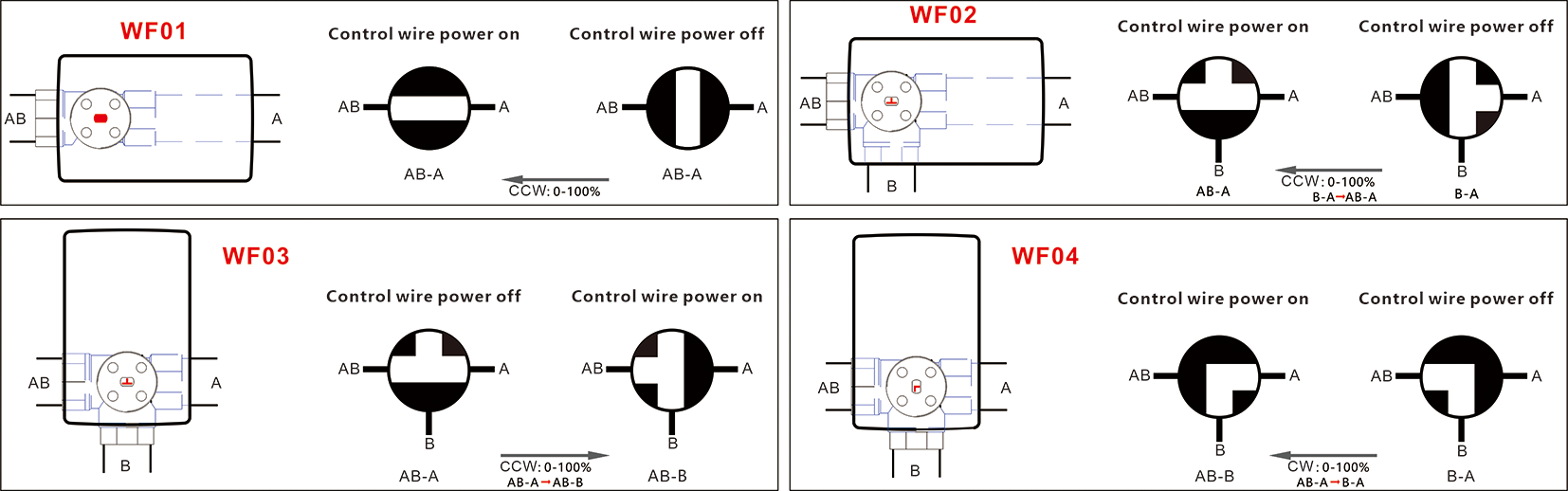

Change of running direction
The rotation can be reversed by pushing the CCW/CW switch on the casing.
Factory settings: "CW"

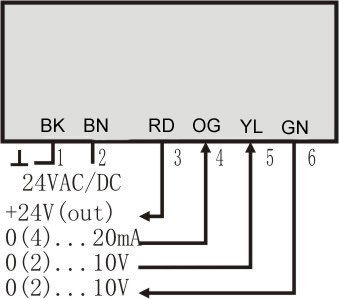

Dimension and Wiring
Actuator
WVA4-104, WVA4-204, WVA4-304
WVA4-104
WVA4-204
WVA4-204-2		WVA4-304
WVA4-304-2
