WRA-63..(A)

AC Electric SS304 Ball Valve
Number of views:
1306
Quantity
-
+
Product description
Description
Winner motorized ball valve consists of on/off type or 3-point type actuator and WSBV… series SS304 ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.

Application
HVAC system, heating system, Water treatment system, Industrial equipment

Operational mode
Winner motorized ball valve is motor-operated by a type of WRA-63…, and WRA-63…A actuator. The actuator is controlled by a modulating on/off or 3-point control system and move the ball of the valve, to the opening position dictated by the control signal.

Technical data
Valve body:
Medium: cold/hot water, with 50% glycol                                             Temperature of medium: -10°C...130°C
Rated pressure: 600WOG (PN40)                                                           Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH                                      Size: 1/2", 3/4"and 1"
Valve type: 2-way and 3-way

Material
Valve body: stainless steel SS304                                                            Seal: ball: EPDM+PTFE
Ball: Stainless Steel SS304                                                                       Stem: EPDM O-rings

Model No.



Inner Dia.

Inch

Kvs(m3/h)

△Pmax(KPa)

△Ps(KPa)

WSBV215

2-way

15mm

1/2"

6.15

1000

1400

WSBV220

20mm

3/4"

10.5

1000

1400

WSBV225

25mm

1"

16.1

1000

1400

WSBV315

3-way

15mm

1/2"

3.95

1000

1400

WSBV320

20mm

3/4"

6.80

1000

1400

WSBV325

25mm

1"

15.8

1000

1400


Actuator
WRA-63…   AC230/110/24V, 50/60Hz, 3-point
WRA-63…A  AC230/110/24V, 50/60Hz, on/off
Output torque: >3.5N.m                                                                         Angle of rotation: 90°
Protect rank: IP55/IP54                                                                           On/off time: 16S

Function (3-point or on/off type)
The actuator is controlled by a modulating on/off or 3-point control signal, using reversible synchronous motor and gear speed reducer drive to fix and lock.

WRA-63… 3-point type
Black wire is power on                                                                            Valve closed
Brown wire is power on                                                                          Valve open
Black or brown wire is power off                                                            Valve keep the current position
Blue wire is connected to the null wire.                                                  Also can be used as on/off type.
WRA-63…A on/off type
Black wire is the control wire.                                                                  Power on: valve open, power off: valve close
Brown wire is connected to the power wire.
Blue wire is connected to the com.                                                         Only can be used as on/off type.

Model No.

Working Voltage

Actuator type

Output torque

Consumption

On/off time

Valve body

WRA-6320

230VAC±15%
50/60Hz

3-point or on/off

3.5N.m

5W

50Hz:16S
60Hz:12S

WSBV215
WSBV220
WSBV225
WSBV315
WSBV320
WSBV325

WRA-6320A

On/off

WRA-6310

110VAC±15%
50/60Hz

3-point or on/off

WRA-6310A

On/off

WRA-6302

24VAC±15%
50/60Hz

3-point or on/off

WRA-6302A

On/off


Installation:
Insert the valve stem to the bottom of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve’s mounting hole. Then screw down the brass cap nut

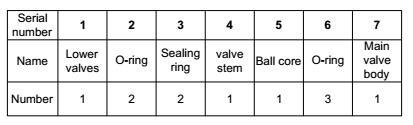

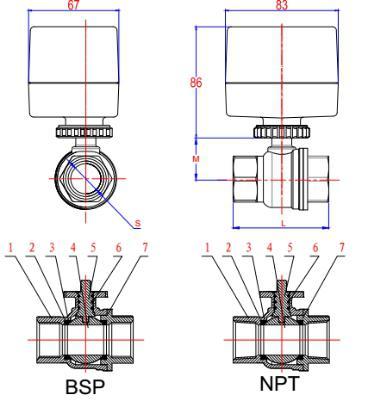

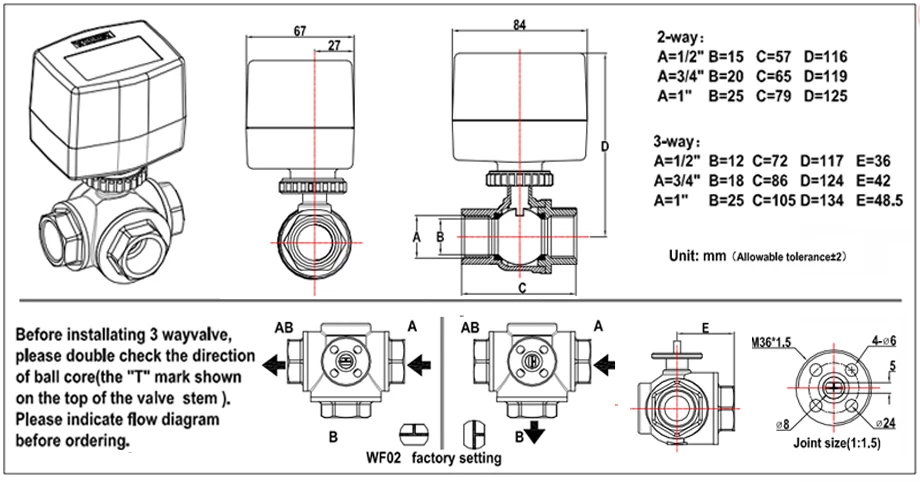

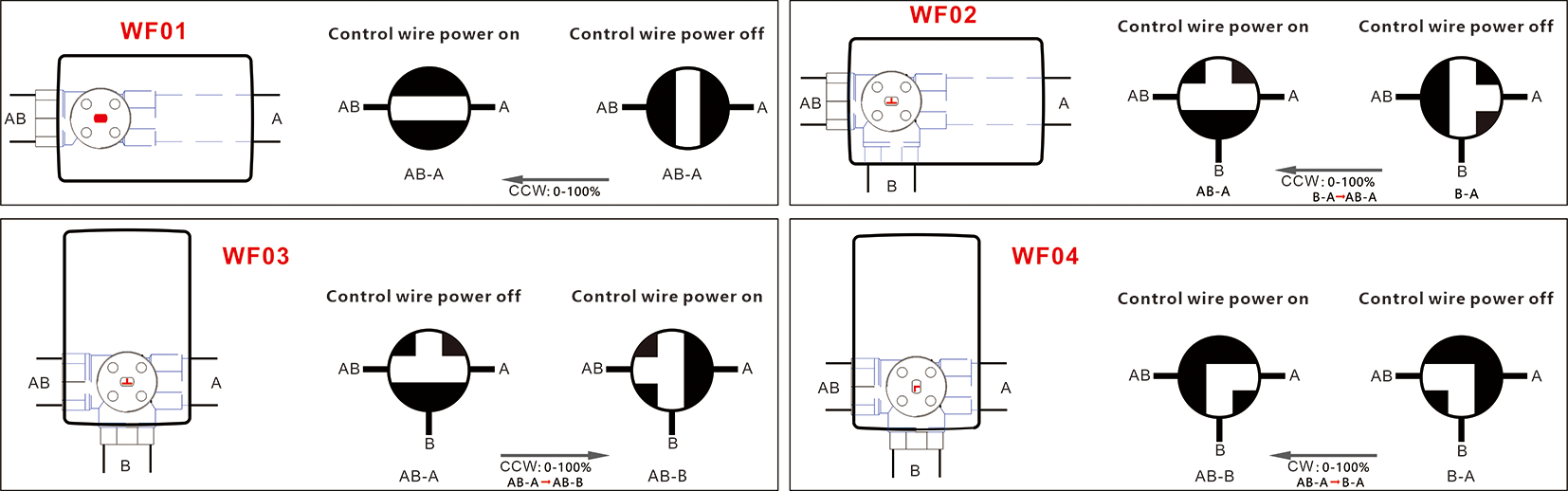

Dimension and Wiring

WRA-63



WRA-63



WRA-63

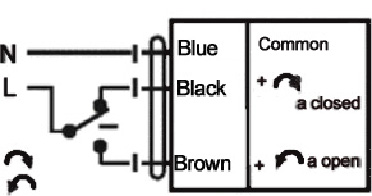

WRA-63 Valve(ON):Brown wire
Valve (OFF):Black wire
Com(N):Blue wire
Black wire and brown wire are prohibited to get electricity at the same time!!!
WRA-6320, WRA-6310,WRA-6302
WRA-63 Control wire: Black wire
Power wire(L): Brown wire
Common port(N): Blue wire
WRA-6320A,WRA-6310A,WRA-6302A
