WRA-42..(A）

DC Electric SS304 Ball Valve

Classification:

Electric SS304 Ball Valve

Customer demand
WRA-63/42..Series+WSBV215.STEP
WRA-63/42..Series+WSBV220.STEP
WRA-63/42..Series+WSBV225.STEP
WRA-63/42..Series+WSBV315.STEP
WRA-63/42..Series+WSBV320.STEP
WRA-63/42..Series+WSBV325.STEP

Product Description

Description
Winner motorized ball valve consists of on/off type or 3-point type actuator and WSBV… series SS304 ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque.

Application
HVAC system, heating system, Water treatment system, Industrial equipment

Operational mode
Winner DC motorized ball valve is motor-operated by a type of WRA-42…, and WRA-42…A actuator. The actuator is controlled by a modulating on/off or 3-point control system and move the ball of the valve, to the opening position dictated by the control signal.

Technical data
Valve body:
Medium: cold/hot water, with 50% glycol                                   Temperature of medium: -10°C...90°C
Rated pressure: PN20                                                                Pipe connector: internal thread
Ambient temp. range: −5…+60°C；0…90%RH                         Size: 1/2", 3/4"and 1"
Valve type: 2-way and 3-way

Material
Valve body: Stainless Steel SS304                                                Seal: ball: EPDM+PTFE
Ball: Stainless Steel SS304                                                            Stem: EPDM O-rings， with 3 O-ring

Model No.



Inner Dia.

Inch

Kvs(m3/h)

△Pmax(KPa)

△Ps(KPa)

Net Weight

WSBV215

2-way

15mm

1/2"

10

1000

1000

231g

WSBV220

20mm

3/4"

16

1000

1000

349g

WSBV225

25mm

1"

26

1000

1000

505g

WSBV315

3-way

12mm

1/2"

6.5

1000

1000

434g

WSBV320

18mm

3/4"

13

1000

1000

842g

WSBV325

25mm

1"

26

1000

1000

1519g
  • V-groove ball valves with different Kv values can be customized. Rc internal thread stainless steel 304, 316, 316L stainless steel ball valves can be made.
  • BSP and NPT threads are commonly used products in our company.

Actuator
WRA-42…   DC3/6-12/24V, 3-point
WRA-42…A  DC3/6-12/24V, on/off
Output torque: 2.5N.m                                                                   Angle of rotation: 90°
Protect rank: IP55/IP54                                                                 On/off time: 5-12S

Function （3-point or on/off type）
The actuator is controlled by a modulating on/off or 3-point control signal, using reversible synchronous motor and gear speed reducer drive to fix and lock.

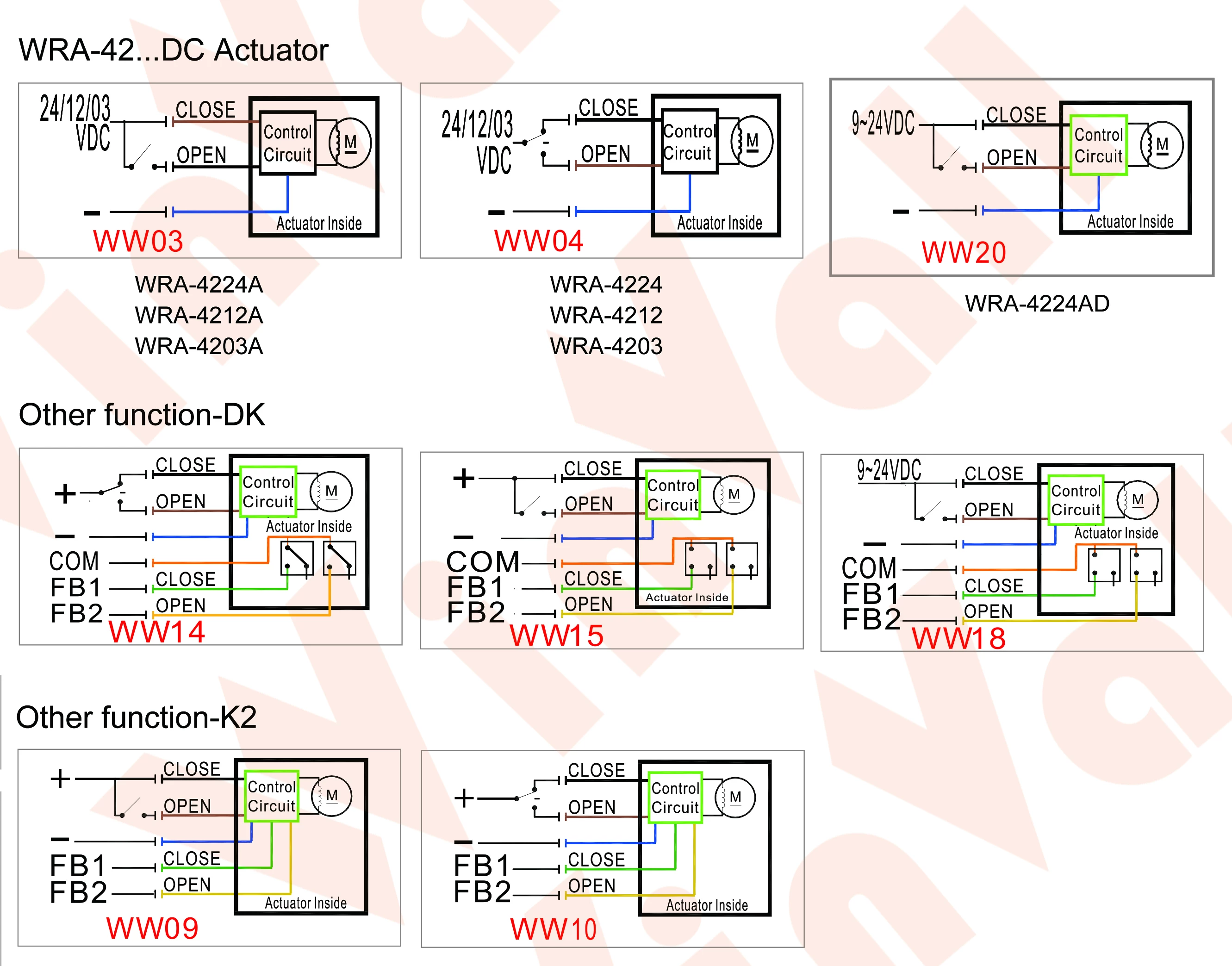

WRA-42… 3-point type
Brown wire is power on                                                              Valve open
Black wire is power on                                                                Valve close
Brown or black wire is power off                                                Valve keep the current position
Blue wire is connected to the null wire.
Also can be used as on/off type.

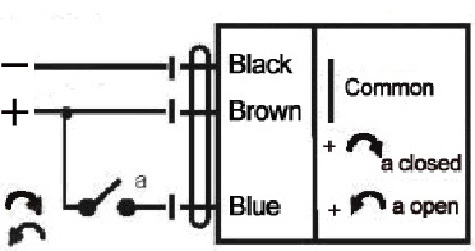

WRA-42…A on/off type
Blue wire is the control wire.                                                       Power on: valve open, power off: valve close
Black wire is connected to the com.
Brown wire is connected to the power wire.
Only can be used as on/off type.

Actuator-DK
Full open feedback and Full close feedback;


Model No.

Working Voltage

Actuator type

Output torque

Consumption

On/off time

Valve body

WRA-4203

DC3V

3-point or on/off

2.5N.m

3W

5-12S

WSBV215
WSBV220
WSBV225
WSBV315
WSBV320
WSBV325

WRA-4203-DK3-point and feedback

WRA-4203A

On/off

WRA-4203A-DKOn/off and feedback

WRA-4212

DC12V

3-point or on/off

WRA-4212-DK3-point and feedback

WRA-4212A

On/off

WRA-4212A-DKOn/off and feedback

WRA-4224

DC24V

3-point or on/off

WRA-4224A

On/off

WRA-4224AD9-24VDCOn/off

** matters needing attention: * Remember not to spray ethylene glycol onto the actuator housing, especially the bottom rotating cam, otherwise it may cause damage to the cam !!

** Every 10000 times or 1 year of opening/closing of an electric ball valve, add 1000 # silicone oil or other non freezing and non corrosive lubricating oil to the stem groove of the valve body. Rotate the valve stem CW and CCW for 1-2 turns.



Installation:
Insert the valve stem to the bottom of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve’s mounting hole. Then screw down the brass cap nut

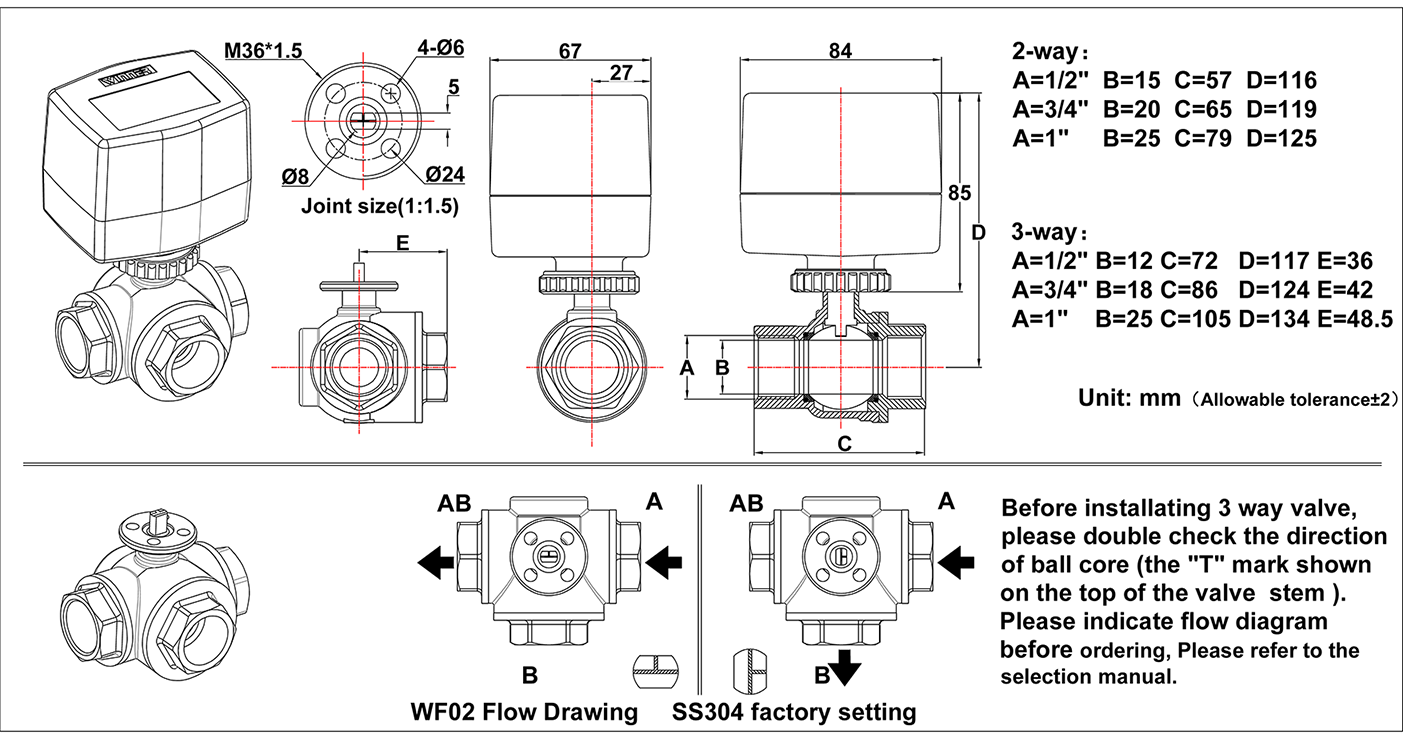

Dimension, Wiring, Flow
