WRA-42

DC Electric Ball Valve
没有此类产品
Customer demand
Product description
Description
Winner DC motorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve,which have compact structure,stable operation,excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner DC motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.

Application
HVAC system, heating system, Water treatment system, Industrial equipment

Operational mode
Winner DC motorized ball valve is motor-operated by a type of WRA-42…, and WRA-42…A actuator. The actuator is controlled by a modulating on/off or 3-point control system and move the ball of the valve, to the opening position dictated by the control signal.

Technical data
Valve body:
Medium: cold/hot water, with 50% glycol    Temperature of medium: 2°C...90°C
Rated pressure: PN20                 Pipe connector: internal thread
Ambient temp. range: -20…+70°C;0…95%RH   Size: 1/2", 3/4"and 1"   Valve type: 2-way and 3-way

Material
Valve body: forged brass, Hpb59-1          Seal: ball: EPDM+PTFE, with double O-ring
Ball: nickle-plated brass                Stem: EPDM O-rings, with double O-ring

Model No.



Inner Dia.

Inch

Kvs(m3/h)

△Pmax(KPa)

△Ps(KPa)

W8BV215

2-way

15mm

1/2"

6.15

1000

1400

W8BV220

20mm

3/4"

10.5

1000

1400

W8BV225

25mm

1"

16.1

1000

1400

W8BV315

3-way

15mm

1/2"

3.95

1000

1400

W8BV320

20mm

3/4"

6.80

1000

1400

W8BV325

25mm

1"

15.8

1000

1400


Actuator
WRA-42…   DC3/6-12/24V, 3-point
WRA-42…A  DC3/6-12/24V, on/off
Output torque: 2N.m      Angle of rotation: 90°
Protect rank: IP55/IP54        On/off time: 2-12S

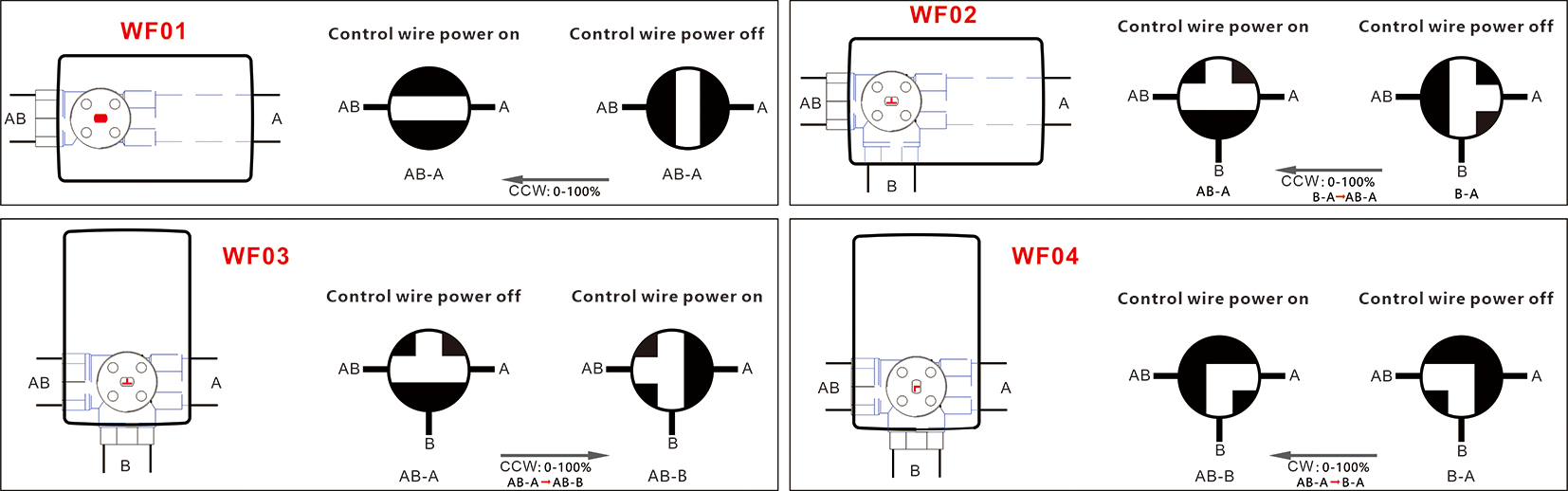

Function (3-point or on/off type)
The actuator is controlled by a modulating on/off or 3-point control signal, using reversible synchronous motor and gear speed reducer drive to fix and lock.
WRA-42… 3-point type
Brown wire is power on                Valve open
Black wire is power on                Valve close
Brown or black wire is power off          Valve keep the current position
Blue wire is connected to the null wire.
Also can be used as on/off type.
WRA-42…A on/off type
Blue wire is the control wire.        Power on: valve open, power off: valve close
Black wire is connected to the com.
Brown wire is connected to the power wire.
Only can be used as on/off type.

Model No.

Working Voltage

Actuator type

Output torque

Consumption

On/off time

Valve body

WRA-4203

DC3V

3-point or on/off

2.5N.m

2W

15S

W8BV215
W8BV220
W8BV225
W8BV315
W8BV320
W8BV325

WRA-4203A

On/off

WRA-4212

DC12V

3-point or on/off

WRA-4212A

On/off

WRA-4224

DC24V

3-point or on/off

WRA-4224A

On/off


Installation:
Insert the valve stem to the bottom of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve’s mounting hole. Then screw down the brass cap nut

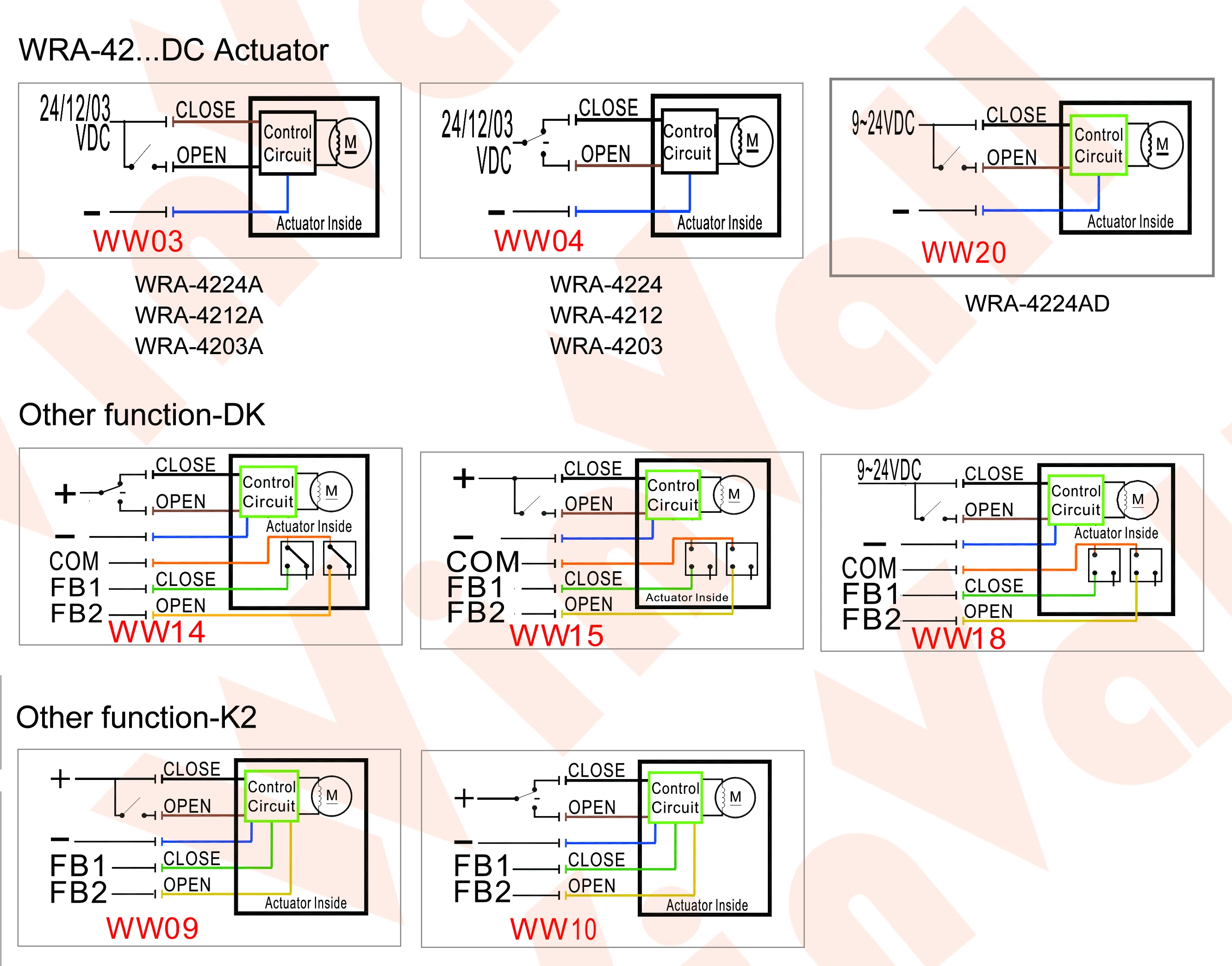

Dimension and Wiring

Valve(ON):Brown wire
Valve(OFF):Black wire
Com:Blue wire
WRA-4203, WRA-4212,WRA-4224
On-Off wire:BLUE wire
Power wire:BROWN wire
Common port:BLACK wire
WRA-4203A,WRA-4212A,WRA-4224A
