WRA3-....(D）

DC Control Ball Valve

Classification:

Control Ball Valve

Customer demand

Product Description

Description
Winner WRA3-...(D) series electric DC control ball valve consists of on/off type or 3-point type DC actuator and W8… series ball valve，which have compact structure，stable operation，excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque.

Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.

Operational mode
Winner motorized ball valve is motor-operated by a type of WRA3-…D actuator. The actuator is controlled by a modulating on/off control system and move the ball of the valve, to the opening position dictated by the control signal…

Technical data
Valve body:
Medium: cold/hot water, with 50% glycol                                                  Temperature of medium: 2°C...90°C
Rated pressure: PN20                                                                                  Pipe connector: internal thread
Ambient temp. range: −5…+60°C；0…90%RH                                           Size: G1/2" -G2"
Valve type: 2-way and 3-way                                                                      Flow characteristic: equal percentage

Actuator:
Cover: PC                                                                                                     Rotating shaft: POM & Stainless stell(Optional)
Power supply :3VDC, 12VDC, 24VDC                                                          Torque：>6N.m
Angle of rotation: 90°                                                                                  Manual handle available
Protect rank: IP65

Material
Valve body: forged brass, Hpb59-1                                                            Seal: ball: EPDM+PTFE
Ball: stainless -steel or chrome plate brass.                                                Stem: EPDM

Matching Valve body parameters:

Model No.

Description

DN(mm)

Inch

Kvs(m3/h)

△Pvmax
(MPa)

△Ps
(KPa)

W8BV215

2-way

DN15

1/2”

6.15

2.5Mpa

1400

W8BV220

2-way

DN20

3/4”

10.5

2.5Mpa

1400

W8BV225

2-way

DN25

1”

16.1

2.5Mpa

1400

W8BV232

2-way

DN32

11/4”

16

2.5Mpa

1400

W8BV240

2-way

DN40

11/2”

25

2.5Mpa

1400

W8BV250

2-way

DN50

2”

40

2.5Mpa

1400

W8BV315

3-way

DN15

1/2”

3.95

2.5Mpa

1400

W8BV320

3-way

DN20

3/4”

6.8

2.5Mpa

1400

W8BV325

3-way

DN25

1”

15.8

2.5Mpa

1400

W8BV332

3-way

DN32

11/4”

16

2.5Mpa

1400

W8BV340

3-way

DN40

11/2”

25

2.5Mpa

1400

W8BV350

3-way

DN50

2”

40

2.5Mpa

1400

Actuator technical parameters：

Model

Control

Power

Torque (N.m)

On/off Time (s)

WRA3-105D

On/off

24VDC

6

10-35

WRA3-205D

ON/off

12VDC

6

10-35

WRA3-205D-K

ON/off

12VDC

6

10-35

WRA3-305D

On/off

3VDC

6

10-35

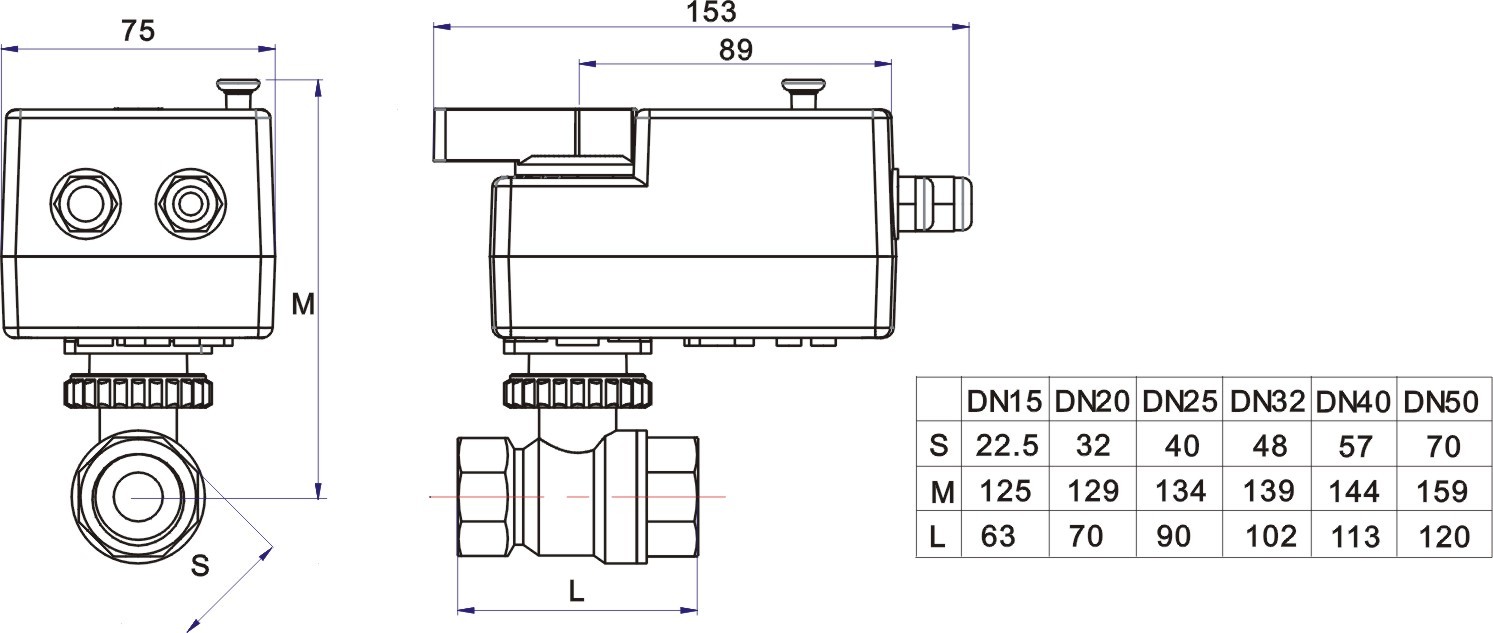

Dimension and Wiring
WRA3-105D/205D/305D

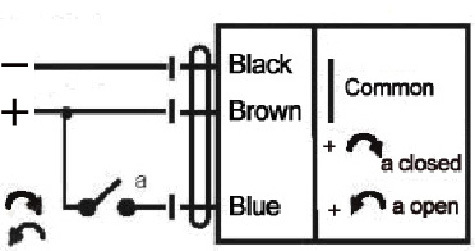

On-Off wire：BLUE wire
Power wire(+)：BROWN wire
Common port(-)：BLACK wire
WRA3-105D/205D/305D

WRA3-105D/205D/305D
Blue wire is the control wire.               Power on: valve open, power off: valve close
Black wire is connected to the com.          Brown wire is connected to the power wire.

WRA3-105D-K/205D-K/305D-K
On-Off wire: Blue wire
Power wire(+): Brown wire    Common port(-): Black wire

Full open feedback: Blue wire
Full close feedback: Brown wire
