WRA-53..(A)

Mini Motorized Ball Valve
Number of views:
1223
Quantity
-
+
Product description
Description
Winner mini motorized ball valve consists of on/off type or 3-point type actuator and W6BV… series ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.

Application
HVAC system, heating system, Water treatment system, Industrial equipment

Operational mode
Winner motorized ball valve is motor-operated by a type of WRA-5320, and WRA-5320A actuator. The actuator is controlled by on/off or 3-point control system and move the ball of the valve, to the opening position dictated by the control signal.

Technical data
Valve body:
Medium: cold/hot water, with 50% glycol                  Temperature of medium: 2°C...90°C
Rated pressure: PN16                                                  Pipe connector: internal thread
Ambient temp. range: −5…+60°C; 0…90%RH             Size: 1/2", 3/4" and 1"
Valve type: 2-way

Material
Valve body: forged brass, Hpb59-1                              Seal: ball: EPDM+PTFE
Ball: chrome-plated brass                                             stem: EPDM O-rings

Model No.



Inner Dia.

Inch

Kvs(m3/h)

△Pvmax(KPa)

△Ps(KPa)

W6BV215

2-way

12mm

1/2"

8.6

600

900

W6BV220

15mm

3/4"

21

600

900

W6BV225

20mm

1"

26

600

900


Actuator
WRA-5320   AC230, 50/60Hz, 3-point
WRA-5320A   AC230, 50/60Hz, on/off
Output torque: 2.5N.m                                                Angle of rotation: 90°
Protect rank: IP54                                                        On/off time: 19S/50Hz; 15S/50Hz

Function  (3-point or on/off type)
The actuator is controlled by on/off or 3-point control signal, using synchronous motor.

WRA-5320  3-point type
Blue wire is power on                                                  Valve closed
Brown wire is power on                                               Valve open
Blue or brown wire is power off                                  Valve keep the current position
Black wire is connected to the null wire.                     Also can be used as on/off type.

WRA-5320A on/off type
Black wire is the control wire.                                      Power on: valve open, power off: valve close
Brown wire is connected to the power wire.
Blue wire is connected to the com.                             Only can be used as on/off type.

Model No.

Working Voltage

Actuator type

Output torque

Consumption

On/off time

Valve body

WRA-5320

230VAC±15%
50/60Hz

3-point or on/off

2.5N.m

6W

50Hz:19S
60Hz:15S

W6BV215
W6BV220
W6BV225

WRA-5320A

On/off


Installation:
Insert the valve stem to the bottom of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve’s mounting hole. Then screw down the brass cap nut

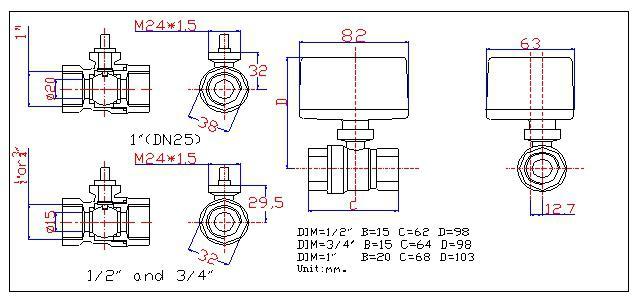

Dimension and Wiring

Valve (ON):Brown wire
Valve (OFF):Blue wire
Com (N):Black wire
Blue wire and brown wire are prohibited to get electricity at the same time!!!
WRA-5320
Control wire:Black wire
Power wire(L):Brown wire
Common port(N):Blue wire
WRA-5320A
