WRA-63..

AC Motorized Brass Ball Valve

Classification:

Motorized Brass Ball Valve

Customer demand

WRA-63/42..Series+W8BV215.STEP

WRA-63/42..Series+W8BV220.STEP

WRA-63/42..Series+W8BV225.STEP

WRA-63/42..Series+W8BV315.STEP

WRA-63/42..Series+W8BV320.STEP

WRA-63/42..Series+W8BV325.STEP

Product Description

Description

Winner motorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve，which have compact structure，stable operation，excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque.

Application

HVAC system, heating system, Water treatment system, Industrial equipment

Operational mode

Winner motorized ball valve is motor-operated by a type of WRA-63…, and WRA-63…A actuator. The actuator is controlled by a modulating on/off or 3-point control system and move the ball of the valve, to the opening position dictated by the control signal.

Technical data

Valve body:

Medium: cold/hot water, with 50% glycol Temperature of medium: -20°C...110°C

Rated pressure: PN20 Pipe connector: internal thread

Size: 1/2", 3/4"and 1" Valve type: 2-way and 3-way

Valve Material

Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE

Ball: SS304 or chrome-plated brass Stem: 3 FKM O-rings

Model No.		Inner Dia.	Inch	Kvs(m³/h)	△Pmax(KPa)	△Ps(KPa)	Net Weight
W8BV215	2-way	12mm	1/2"	6.15	1000	1400	179g
W8BV220		15mm	3/4"	10.5	1000	1400	255g
W8BV225		20mm	1"	16.1	1000	1400	424g
W8BV315	3-way	10mm	1/2"	3.95	1000	1400	236g
W8BV320		15mm	3/4"	6.80	1000	1400	382g
W8BV325		18mm	1"	15.8	1000	1400	598g

***Customizable ball valves that comply with DVGW German drinking water certification.
1. Valve body material: CW724R lead-free copper, SS304 stainless steel
2. Ball material: SS304
3. PTFE and O-ring: comply with KTW and W270 standards.
4. Silicone oil: Silicone oil that meets DVGW standards.

5. Implement PPAP control process.

Actuator

WRA-63… AC230/110/24V, 50/60Hz, 3-point

WRA-63…A AC230/110/24V, 50/60Hz, on/off

Output torque: >3.5N.m Angle of rotation: 90°

Protect rank: IP55/IP54 On/off time: 16s/50Hz, 12s/60Hz

Ambient temp. range: −5…+60°C；0…90%RH

Actuator Material

Shell: PC+ABS

Base: PC+ABS

Rotating shaft: POM

**Customizable to meet ISO 4892-3 fluorescent UV lamp testing standards.

Function （3-point or on/off type）

The actuator is controlled by a modulating on/off or 3-point control signal, using reversible synchronous motor and gear speed reducer drive to fix and lock.

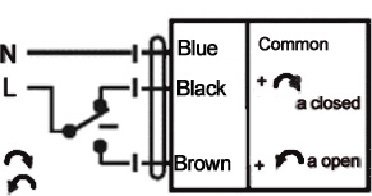

WRA-63… 3-point type

Black wire is power on Valve closed

Brown wire is power on Valve open

Black or brown wire is power off Valve keep the current position

Blue wire is connected to the null wire. Also can be used as on/off type.

WRA-63…A on/off type

Black wire is the control wire. Power on: valve open, power off: valve close

Brown wire is connected to the power wire.

Blue wire is connected to the com. Only can be used as on/off type.

WRA-63…C Capacitor-Return type

On-Off wire ( L )：BROWN wire
N wire : BLUE wire

WRA-63…DK Dry Contacts feedback type

full open feedback, 3A@30VDC; 0.5A@125VAC

full close feesback, 3A@30VDC; 0.5A@125VAC

Installation:

Insert the valve stem to the bottom of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve’s mounting hole. Then screw down the brass cap nut

Model No.	Working Voltage	Actuator type	Output torque	Consumption	On/off time	Valve body
WRA-6320	230VAC±15% 50/60Hz	3-point or on/off	3.5N.m	7W	50Hz:16S 60Hz:12S	W8BV215 W8BV220 W8BV225 W8BV315 W8BV320 W8BV325
WRA-6320-DK		3-point, feedback
WRA-6320A		On/off
WRA-6320A-DK		On/off, feedback
WRA-6310	110VAC±15% 50/60Hz	3-point or on/off
WRA-6310-DK		3-point, feedback
WRA-6310A		On/off
WRA-6310-DK		On/off, feedback
WRA-6302	24VAC±15% 50/60Hz	3-point or on/off
WRA-6302-DK		3-point, feedback
WRA-6302A		On/off
WRA-6302A-DK		On/off, feedback
WRA-6320C	100-250VAC	Capacitor-Return		3W	5-30s
WRA-6320C-DK	100-250VAC	Capacitor-Return feedback		3W
WRA-6302C	9-28VDC/AC	Capacitor-Return		3W
WRA-6302C-DK	9-28VDC/AC	Capacitor-Return feedback		3W
WRA-6302D	9-24VDC/AC	3-point or on/off		3W	<5s
WRA-6302AD	9-24VDC/AC	On/off		3W	<5s

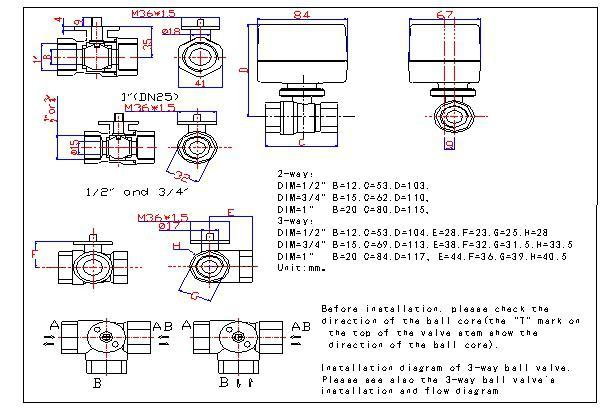

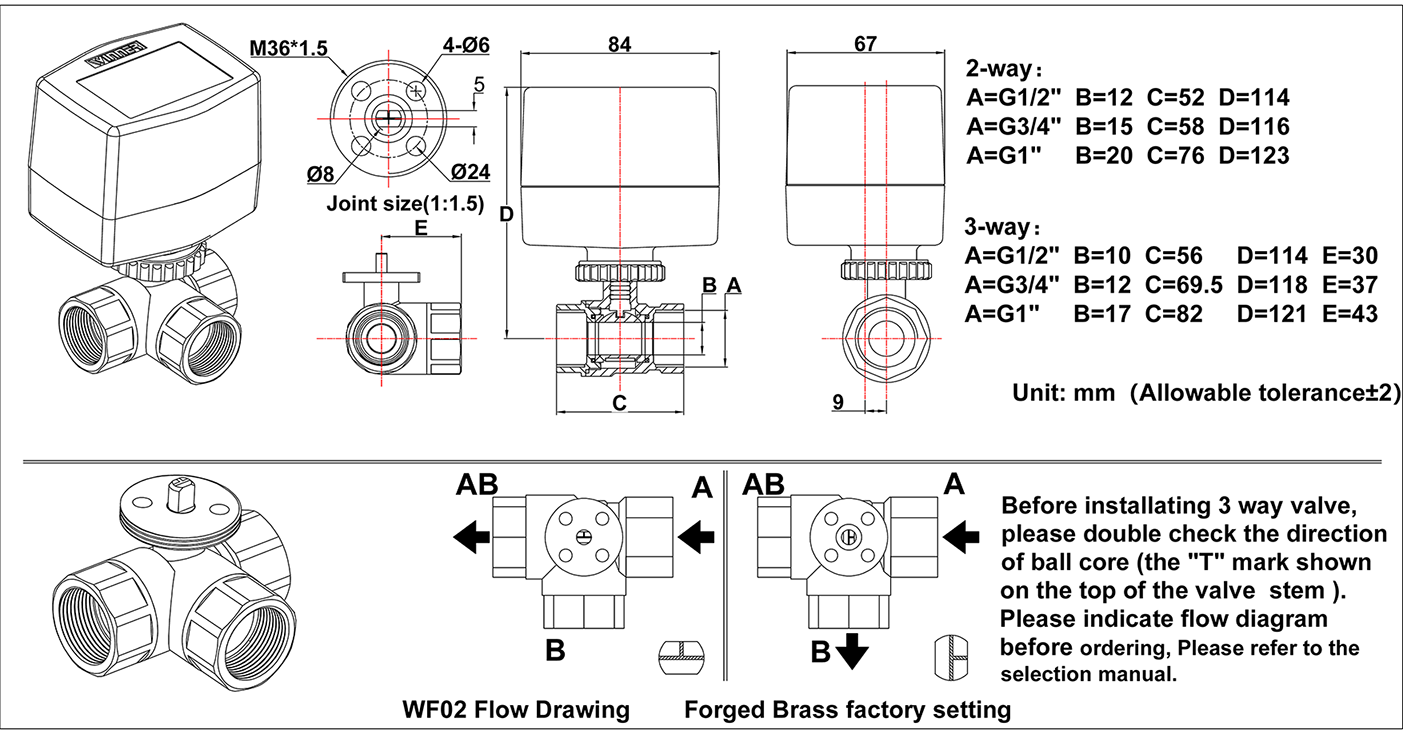

Dimension, Wiring, Flow

Winner Ball Valves Co., Ltd.

National service hotline

0086 731-8278-8880

0086 13808416962

E-mail：webmaster@winner-hvac.com

Business License

by:www.300.cn changsha

	Valve(ON):Brown wire Valve(OFF):Blue wire Com(N):Black wire
Blue wire and brown wire are prohibited to get electricity at the same time!!! WRA-6320, WRA-6310, WRA-6302, WRA-6302D (Power: DC/AC)
	Control wire:Black wire Power wire(L):Brown wire Common port(N):Blue wire
WRA-6320A,WRA-6310A, WRA-6302A, WRA-6302AD (Power: DC/AC)
	Valve (ON): Brown wire Valve (OFF): Black wire Com(N): Blue wire FB1: fully close position feedback，3A@30VDC; 0.5A@125VAC FB2: fully open position feedback，3A@30VDC; 0.5A@125VAC
WRA-6320-DK, WRA-6310-DK, WRA-6302-DK
	Control wire: Black wire Power wire(L): Brown wire Common port(N): Blue wire FB1: fully close position feedback，3A@30VDC; 0.5A@125VAC FB2: fully open position feedback，3A@30VDC; 0.5A@125VAC
WRA-6320A-DK, WRA-6310A,-DK, WRA-6302A-DK
	On-Off wire ( L )：BROWN wire N wire : BLUE wire
WRA-6320C, WRA-6302C
	On-Off wire ： BROWN wire N wire : BLUE wire COM : ORANGE wire FB1: fully close position feedback，3A@30VDC; 0.5A@125VAC FB2: fully open position feedback，3A@30VDC; 0.5A@125VAC
WRA-6320C-DK, WRA-6302C-DK
